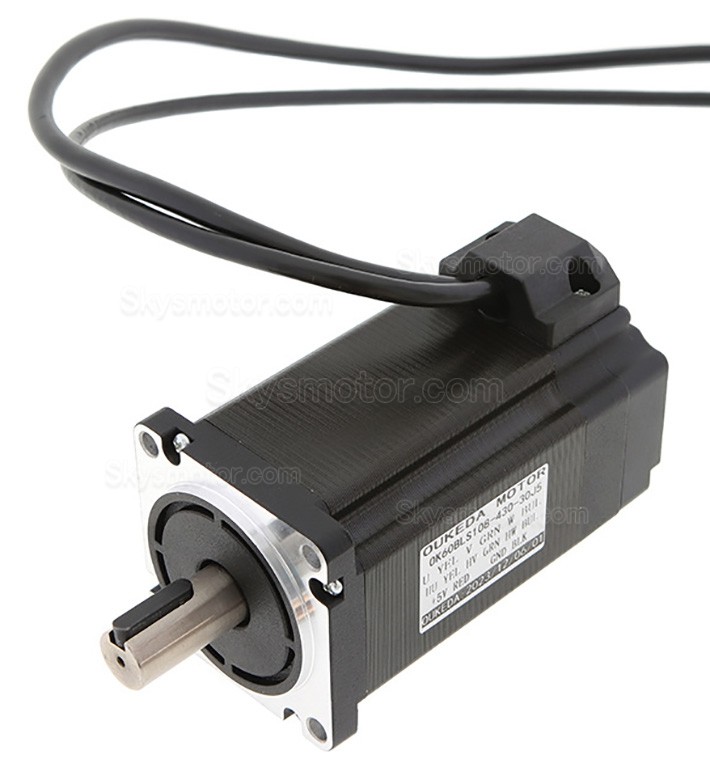

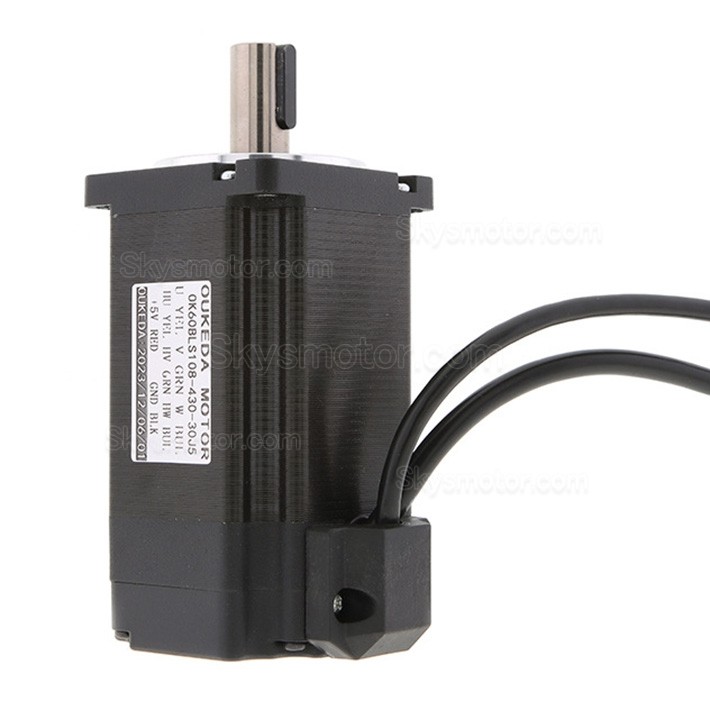

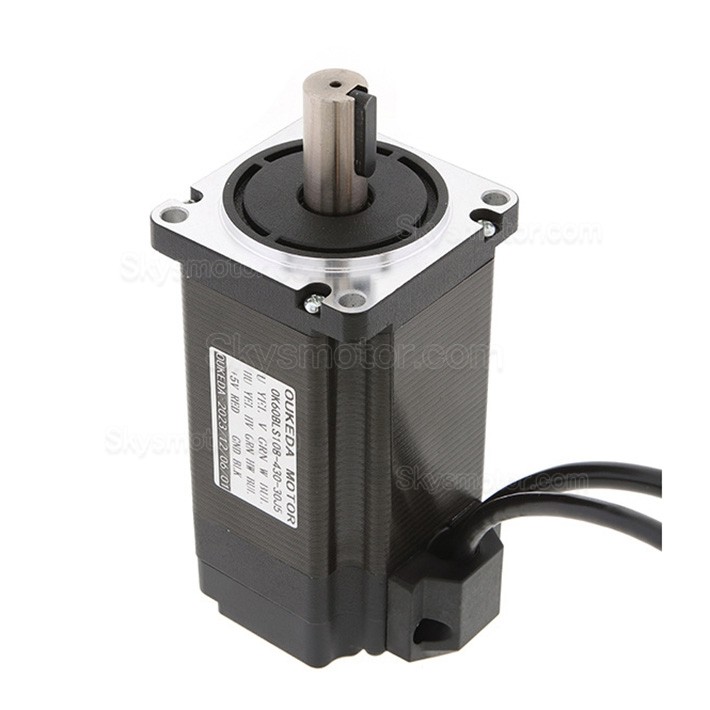

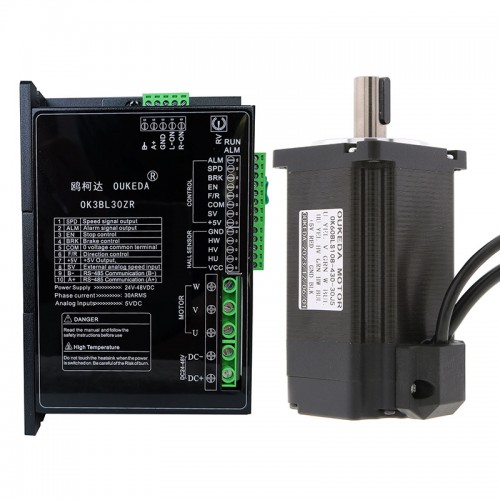

48V ブラシレスDCモーター&BLDCドライバーキット OK60BLS108-430-30J5+OK3BL30ZR 300W 95.55Ncm 3000RPM 3相 50x50x108mm
定格電圧48VDC、定格速度3000RPMの3相ブラシレスDCモーターです。定格トルクは95.55Ncm、定格電力は300Wです。フレームサイズΦ60mm、シャフト径14mm、リード長500mm。
電気仕様:
製造業者部品番号:OK60BLS108-430-30J5
モータータイプ: BLDCモーター
相数:3
定格電圧:48VDC
定格回転数:3600士10%RPM
無負荷回転速度:3000士10%RPM
定格電流:8A
定格出力:300W
定格トルク:95.55Ncm
位相抵抗: 100 ohms

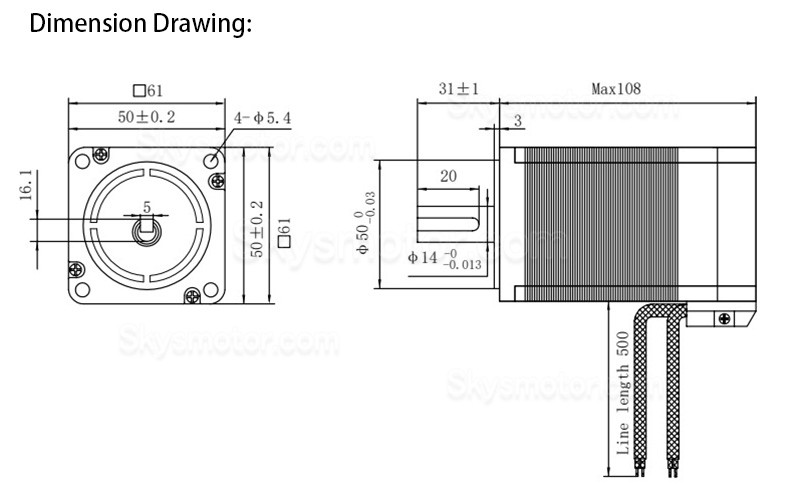

物理仕様:
フレームサイズ: Φ60mm
ボディの長さ: 108mm
軸径: Φ14mm
軸長: 31mm
キー溝シャフトの長さ: 20mm
リードの数: 8
リード長: 500mm
重量:1.6kg;

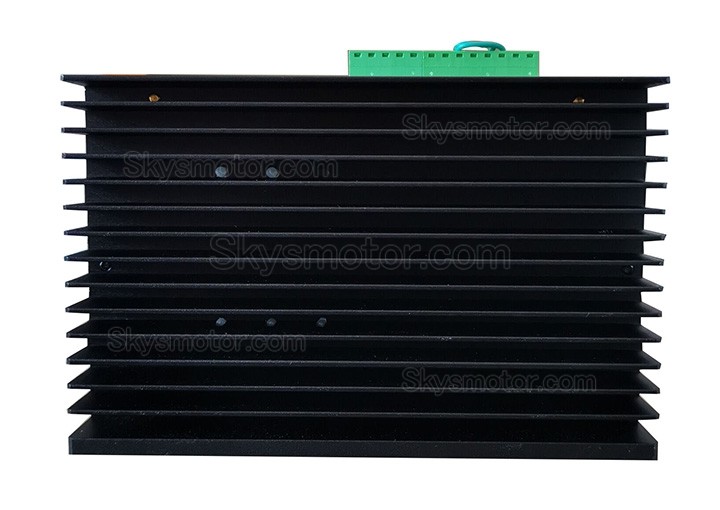

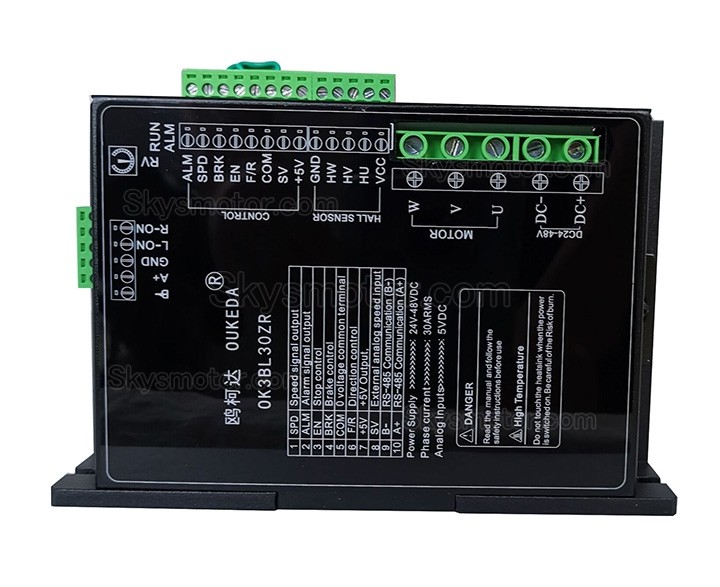

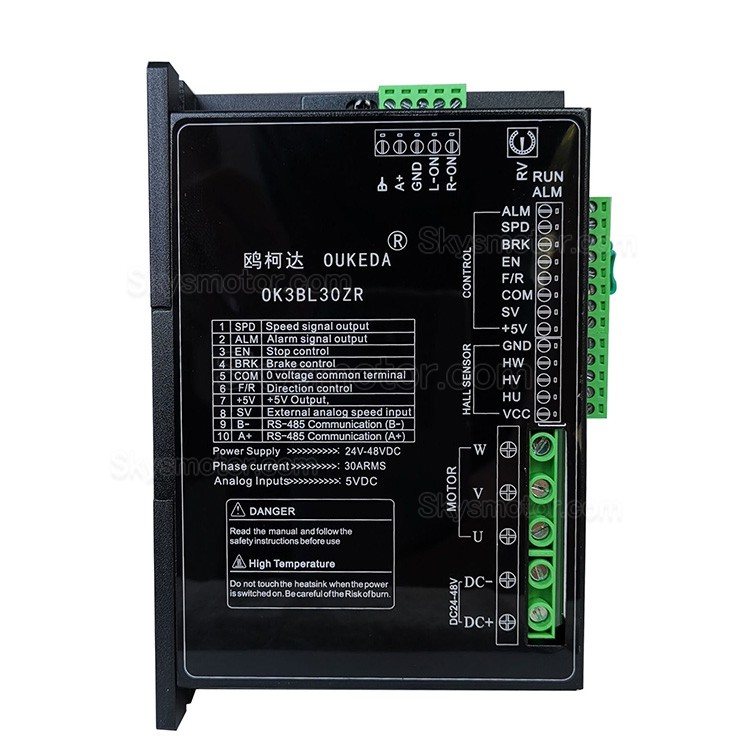

This brushless DC driver features stable performance with a DSP-based computing core and multiple control modes. The fully digital design allows for flexible input control methods and comprehensive software and hardware protection functions. The driver can be connected to a computer via the RS-485 communication interface for parameter adjustment, including settings for protection parameters, motor parameters, and acceleration and deceleration times.
Speed regulation mode:
1: 0-5VDC analog input;
2: 0-100% PWM input (PWM frequency range: [1Kz-2OKHz);
3: External potentiometer speed control;
4: Setting via RS-485 communication.
電気仕様:
電気的パラメータ(Tj=25ºC);
Related Voltage:24-48V
Related Current:30A
入力電圧:14~60VDC, (標準 24V);
Current output:3A-30A; (標準 30A);
Applicable motor speed:100-30000rpm (標準 3000rpm)
過電圧および過電流保護;
CE認証およびRoHS準拠;
動作環境およびその他の仕様(Tj = 25℃/77℉):
冷却: Natural Cooling or Forced cooling
環境: ほこり、油煙、腐食性ガスを避ける
周囲温度: 0℃ - 65℃
湿度: 40%RH-90%RH
動作温度: 0℃ - 50℃
Vibration: 10-55Hz / 0.15mm
保管温度: -20℃ - 65℃

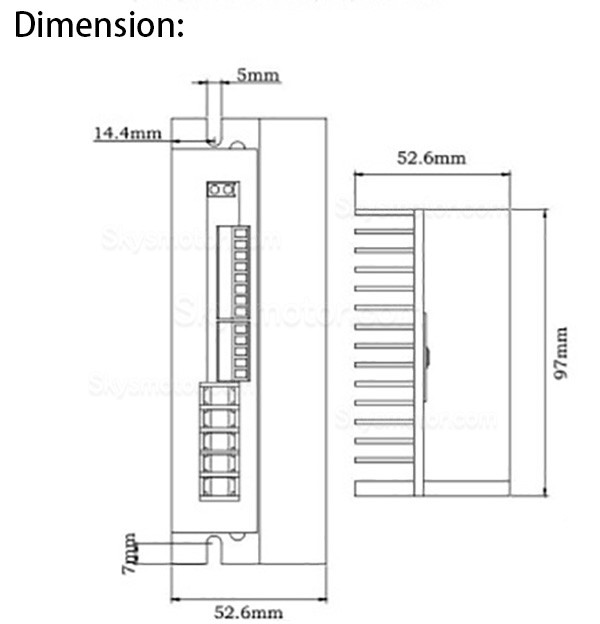

寸法:151*97.5*52.6mm
重量: Approx.160g;
Skysmotor.comで、高品質且つ安値のステッピングモーター、ステッピングモータードライバー、ステッピングモーターコントローラーを購入してください!
BLDCモーター仕様 | |
---|---|
定格回転数(rpm) | 3600 |
定格電力(W) | 300 |
定格電流(A) | 8 |
相数 | 3 |
リード数 | 8 |
フランジサイズ(mm) | Φ60 |
ボディー長さ(mm) | 108 |
定格トルク(Nm) | 0.9555 |
定格電圧(V) | 48 |
シャフト直径(mm) | 14 |
軸長(mm) | 31 |
物理仕様 | |
シャフトタイプ | キー溝 |
シングルシャフト/デュアルシャフト | 単軸 |
重量(g) | 1600 |
リードスクリュー長さ(mm) | 500 |
製品タイプ | BLDCモーター |
キー溝シャフトの長さ | 20 |
BLDC ドライバー仕様 | |
入力電圧(V) | 14~60 |
動作電流(A) | 30 |
速度調整の範囲(RPM) | 100-30000 |
